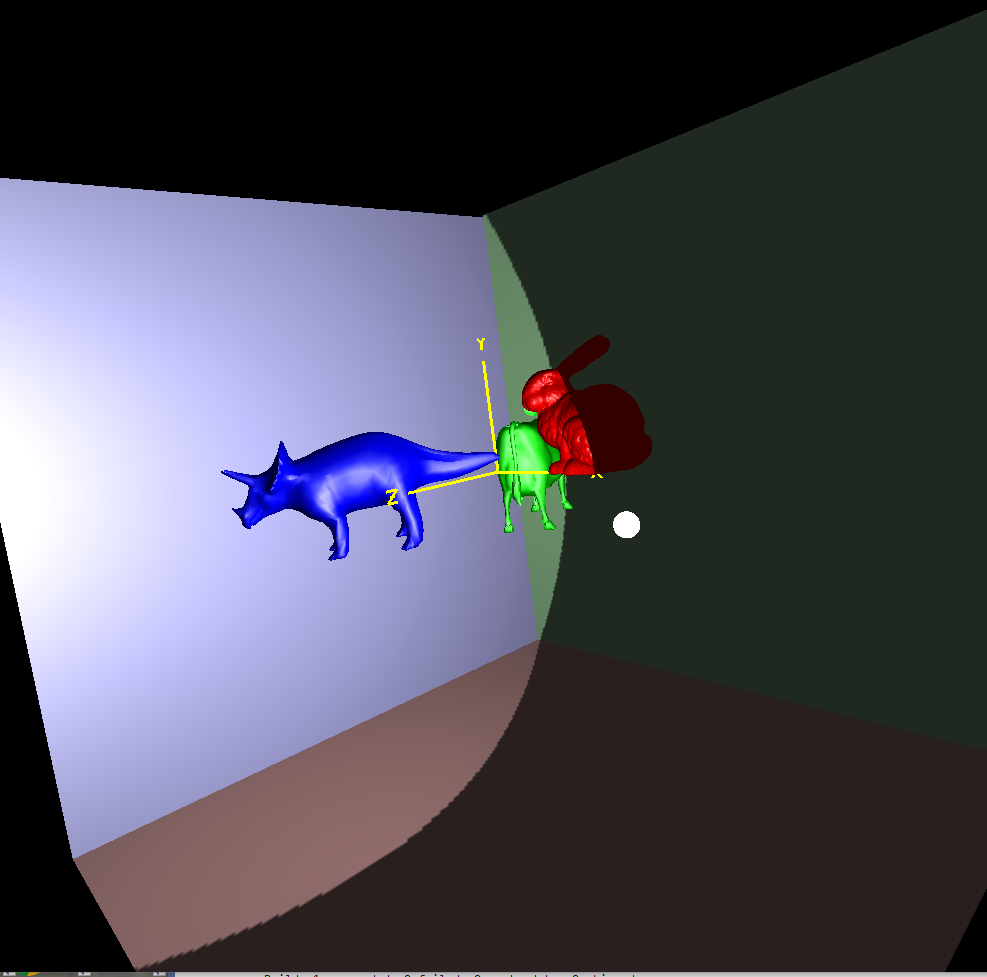

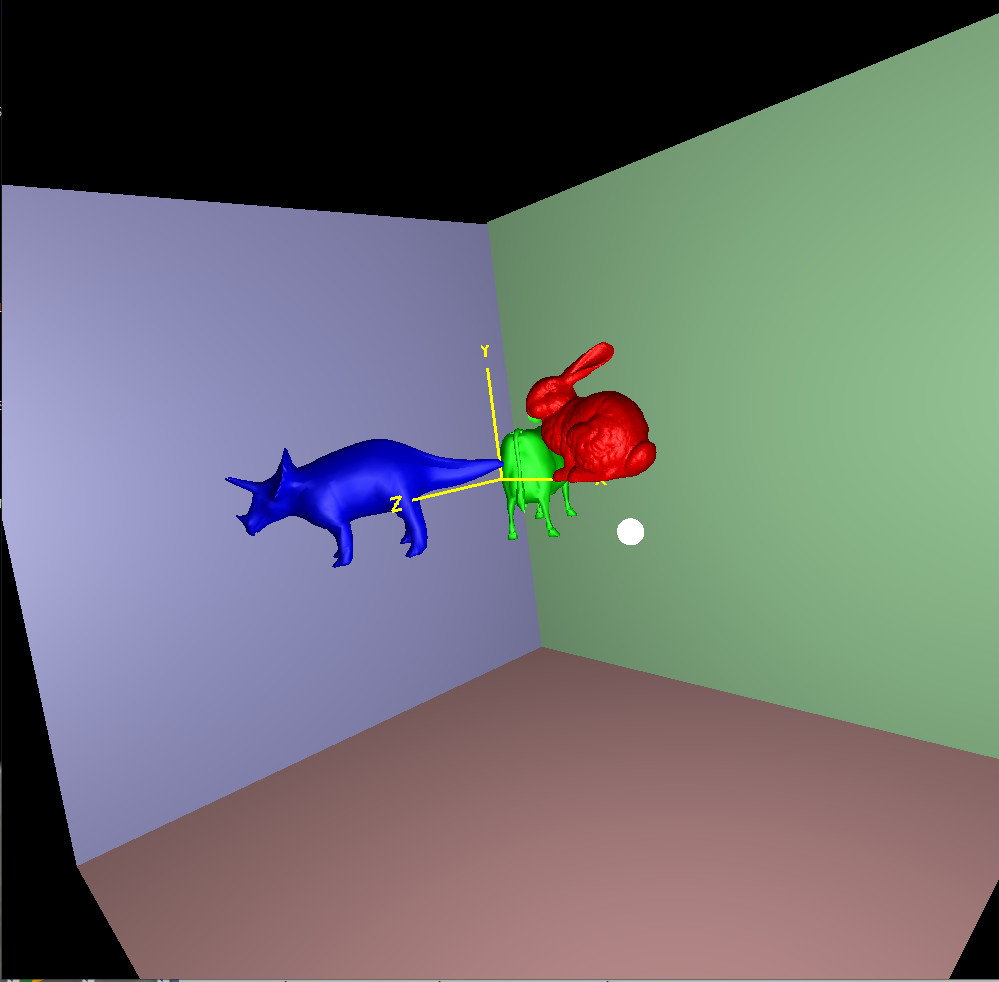

The goal of this project is to create a 3D scene that demonstrates an animated OpenGL light source. (Notice in these images that these are not shadows. Shadows are where light is blocked. This shows light-source shading.)
When you are done with this assignment, you will understand how to add dynamic light sources to your programs so that the viewer can better see the three-dimensionality of the scene. This is also great to know because oftentimes a major part of the storyline in games and movies is controlled by what the user can see and how well they can see it.
The purpose of the floor and walls is to have somthing planar for the light to shine on. This makes it easier to see what the effect of the light is. Exactly how you create the floor and 2 walls is up to you. Something like might work well for the floor:
// in the globals:
GLuint GridDL;
. . .
// in InitLists( ):
#define XSIDE ????? // length of the x side of the grid
#define X0 (-XSIDE/2.) // where one side starts
#define NX ????? // how many points in x
#define DX ( XSIDE/(float)NX ) // change in x between the points
#define YGRID 0.f // y-height of the grid
#define ZSIDE ????? // length of the z side of the grid
#define Z0 (-ZSIDE/2.) // where one side starts
#define NZ ????? // how many points in z
#define DZ ( ZSIDE/(float)NZ ) // change in z between the points
GridDL = glGenLists( 1 );
glNewList( GridDL, GL_COMPILE );
SetMaterial( 0.6f, 0.8f, 0.6f, 30.f ); // or whatever else you want
glNormal3f( 0., 1., 0. ); // for each floor vertex, pointing straight up
for( int i = 0; i < NZ; i++ )
{
glBegin( GL_QUAD_STRIP );
for( int j = 0; j < NX; j++ )
{
glVertex3f( X0 + DX*(float)j, YGRID, Z0 + DZ*(float)(i+0) );
glVertex3f( X0 + DX*(float)j, YGRID, Z0 + DZ*(float)(i+1) );
}
glEnd( );
}
glEndList( );
Since you are using OpenGL's built-in per-vertex lighting, it is important that the grid have lots of vertices!
Each wall can be drawn in a similar manner to the floor. Just be sure you get the orientation of the grid and the direction of the surface normal correct!
In any animating program, it is sometimes helpful to be able to freeze the animation. For example, you could use the 'f' key to toggle the Idle Function on and off.
// in the globals: bool Frozen; . . . // in Reset( ): Frozen = false; . . . // in Keyboard( ): case 'f': case 'F': Frozen = ! Frozen; if( Frozen ) glutIdleFunc( NULL ); else glutIdleFunc( Animate ); break;
| 'w' | Turn the light source color to white |
| 'r' | Turn the light source color to red |
| 'o' | Turn the light source color to orange |
| 'y' | Turn the light source color to yellow |
| 'g' | Turn the light source color to green |
| 'c' | Turn the light source color to cyan |
| 'm' | Turn the light source color to magenta |
| 'p' | Make the light source a point light |
| 's' | Make the light source a spot light |
| 'f' | Freeze/Unfreeze the animation (optional) |
In reality, you can use any user interface that you want. We won't know how you are demonstrating the features of your program, just that it works. The keyboard table above is just a suggestion.
Deliberately time the animation like we've seen before. Here is a good way to do that. Set a constant called something like MS_PER_CYCLE that specifies the number of milliseconds per animation cycle. Then, in your Idle Function, query the number of milliseconds since your program started and turn that into a floating point number between 0. and 1. that indicates how far through the animation cycle you are.
If you wanted to make the light move in a planar circle, you might do this:
// in the defined constants: #define MS_PER_CYCLE 10000 #define SPEED 3. #define LIGHTRADIUS ???? . . . // in the globals: float Time; . . . // in Animate( ): int ms = glutGet( GLUT_ELAPSED_TIME ); ms %= MS_PER_CYCLE; Time = (float)ms / (float)MS_PER_CYCLE; // [0.,1.) . . . // in Display( ): float theta = SPEED * F_2_PI * Time; float r = LIGHTRADIUS; float xlight = -r * cosf(theta); float zlight = r * sinf(theta); float ylight = 0.f;
There are a lot of free .obj files on the web.
Here is a folder with some of my favorite OBJ files.
Here are some sites you can also look through:
You can also just Google the phrase "free obj files".
When you want to bring in a 3D object as a .obj file, use our LoadObjMtlFiles( ) function. This file can be enabled in your sample.cpp file by uncommenting the loadobjmtlfiles.cpp #include. (You will also need to uncomment the #include for bmptotexture.cpp .)
Incorporate the .obj file into your own code
by placing the .obj object into a display list, like this:
// in the globals:
GLuint DinoDL;
. . .
// in InitLists( ):
DinoDL = LoadObjMtlFiles( (char *)"dino.obj" );
. . .
// in Display( ):
glCallList( DinoDL );
Warning! Not all obj files have normal vectors!
Take a look at the lines in the obj file (it is ascii-editable).
If you see lines of text beginning with vn, it has normals.
Use Canvas to turn in:
Note: you don't get credit for these things by just having done them. You get credit by convincing us that your program's lighting behavior is correct. That is, you only get credit if you have made a video that demonstrates the correct visual lighting behavior.
| Item | Points |
| The floor and 2 walls exist and are GL_SMOOTH lighted | 10 |
| There are at least three 3D objects, one an OBJ, colored differently and lit | 20 |
| The point light works properly by shining in all directions | 20 |
| The spot light works properly by shining horizontally towards a wall | 20 |
| The light color can be changed to any of the 7 required colors | 20 |
| There is a small unlit sphere to show where the light source is | 10 |
| Potential Total | 100 |
